With the wide application of human-machine interface, the display content is gradually rich and colorful, and there are higher requirements for display definition, viewing angle range width and working temperature. The common TFT viewing angle range of 50° on the market and the operating temperature of -20 to +70 °C can no longer meet the needs of users. Therefore, Xin Hongtai Company has launched a series of wide-view TFT display screens, which can reach the viewing angle of 80° or more in both the up, down, left and right directions, and the HD perfect quality display with almost full viewing angle. Most wide viewing angle TFT displays The operating temperature is also increased to -30~+80°C.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

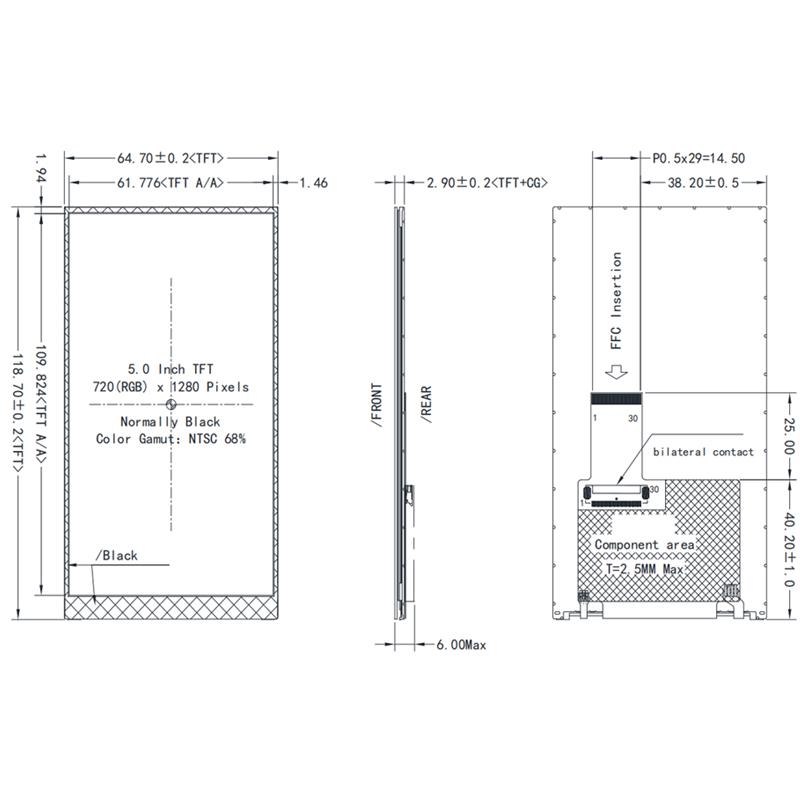

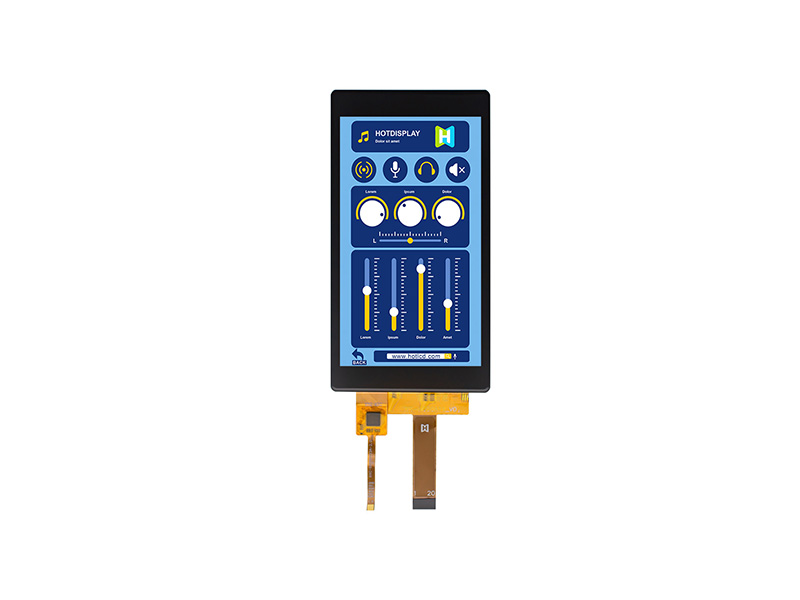

| 5 Inch In-cell TFT LCD Display 720x1280 MIPI DSI Interface ST7123 TFT-H050A20HDIST6G30 | TFT Display | 720x1280 |
|
64.7x118.7x2.9 | 61.776x109.824 | 5.0 | IPS | 600cd/m2 | FPC-30PIN | MIPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7365 | ||

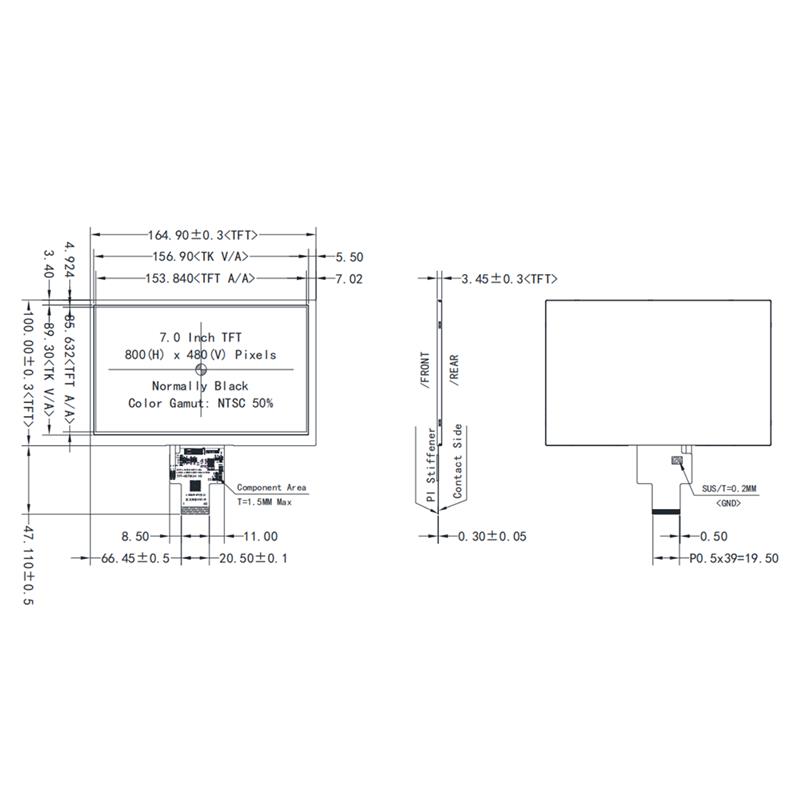

| 7 Inch IPS Viewing Angle TFT Display with RGB Interface 800x480 Resolution | TFT Display | 800x480 |
|
164.9x100.0x3.45 | 153.84x85.632 | 7.0 | IPS | 900cd/m2 | FPC-40pin | RGB | Anti-static ESD 8KV | -30~85℃ | +3.3V | |||
| 7-inch High Brightness TFT LCD 800x480 Display GH7006 TFT-H070A34SVIGH9N40 | TFT Display | 800x480 |
|
164.9 x 100 x 3.45 | 153.84 x 85.632 | 7.0 | IPS | 900cd/m2 | FPC-40pin | LVDS | Anti-static ESD 8KV | -30~85℃ | +3.3V | GH7006 | ||
| 7-inch Ultra Wide Temperature TFT LCD 800x480 Display GH7006 TFT-H070A34SVIGH9N40 | TFT Display | 800x480 |
|
164.9x100x3.45 | 153.84x85.632 | 7" | IPS | MIPI | Anti-static ESD 8KV | -30~85℃ | +3.3V | GH7006 | ||||

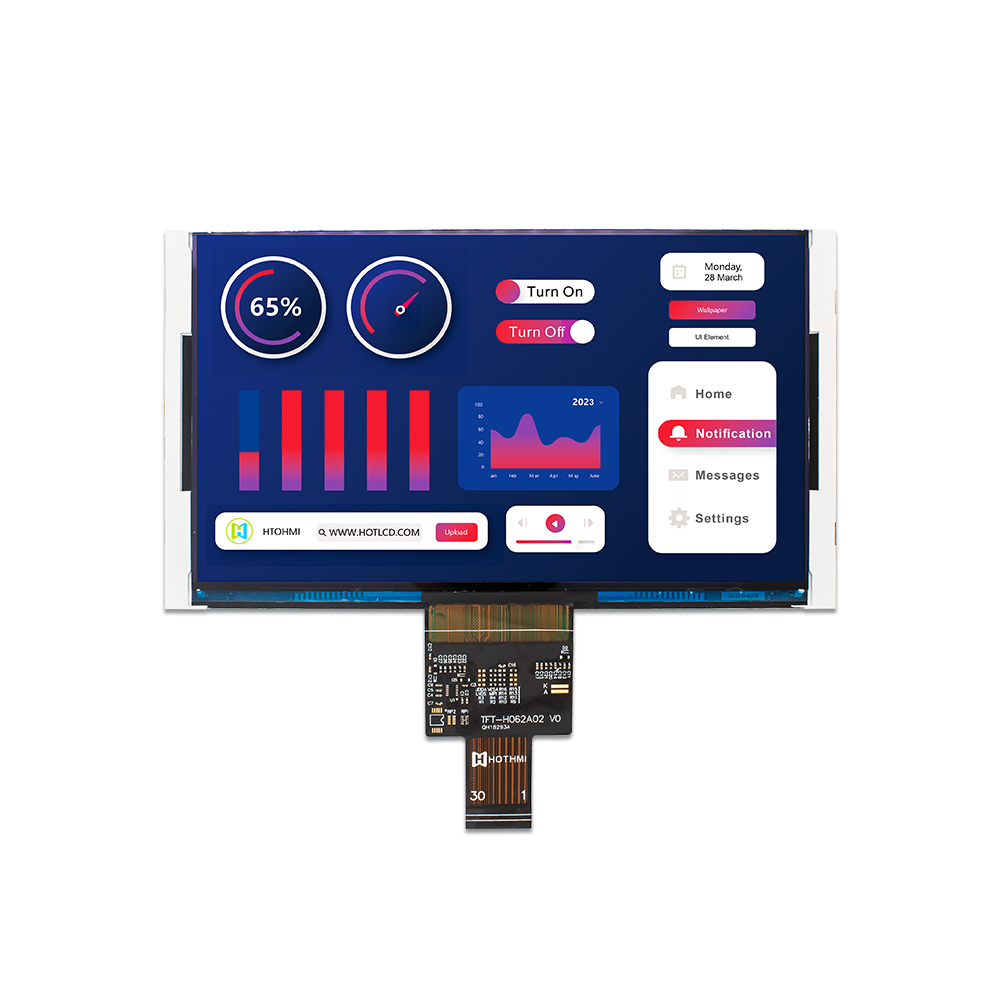

| 6.2-inch Wide Temperature TFT LCD 1024x600 Resolution Display With High Brightness JD9168 TFT-H062A02WSIJD9N40 | TFT Display | 1024x 600 |
|
155.3x88.3x4.7 | 137.47x77.23 | 6.2 | IPS | 900cd/m2 | FPC-40pin | RGB | Anti-static ESD 8KV | -30~80℃ | +3.3V | JD9168 | ||

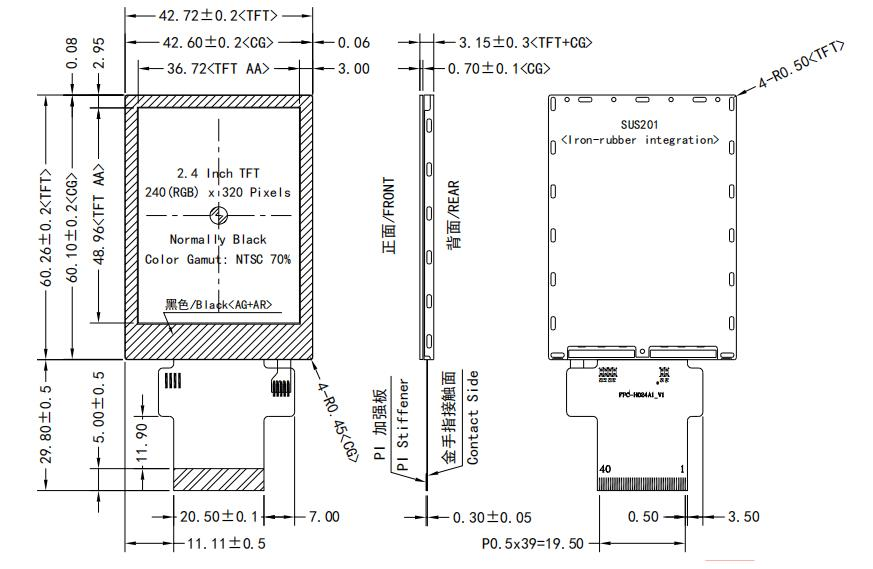

| 2.4-inch TFT LCD 240*320 anti-reflective display IPS full-viewing angle ST7789 TFT-H024A1QVISTKG40 | TFT LCD | 240x320 |
|
42.72 x 60.26 x 3.15 | 2.4 | 2.4 | 36.72 x 48.96 | IPS | 1500 cd/m2 | FPC-40PIN | MCU | Anti-static ESD 8KV | -30~80℃ | 3.3V | ST7789 | |

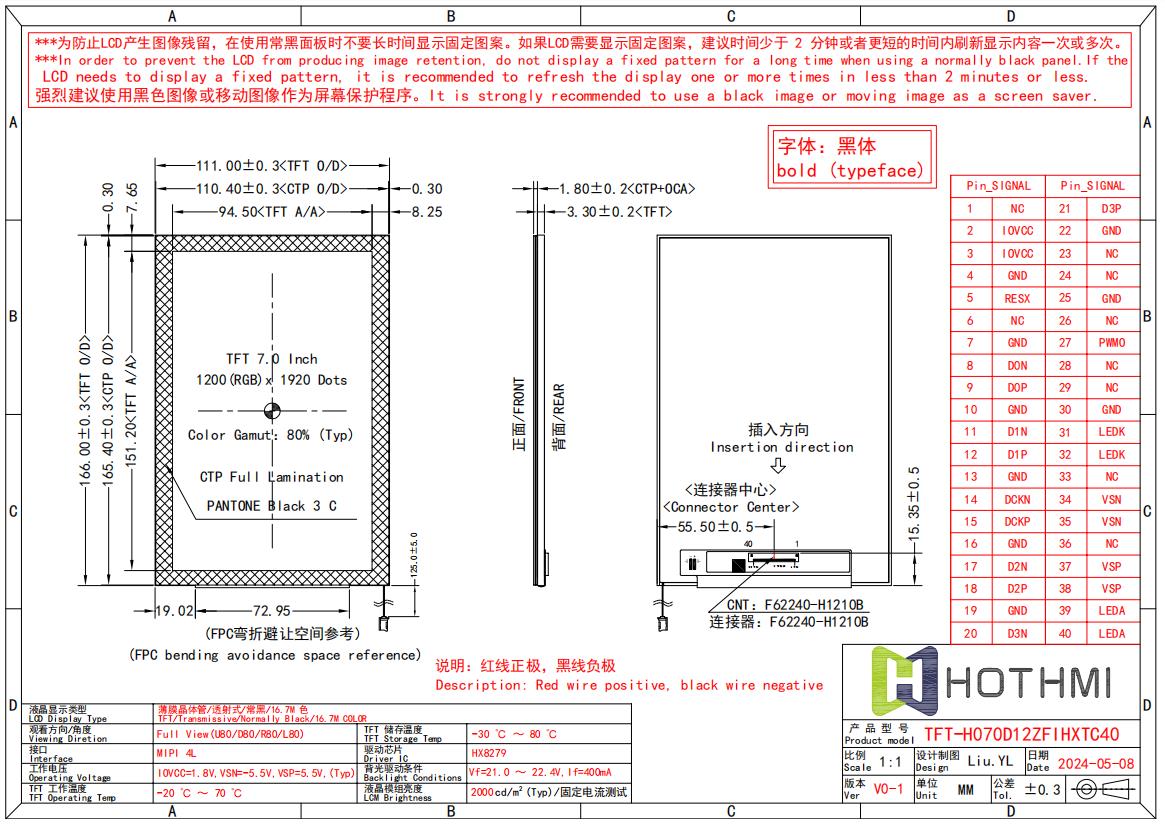

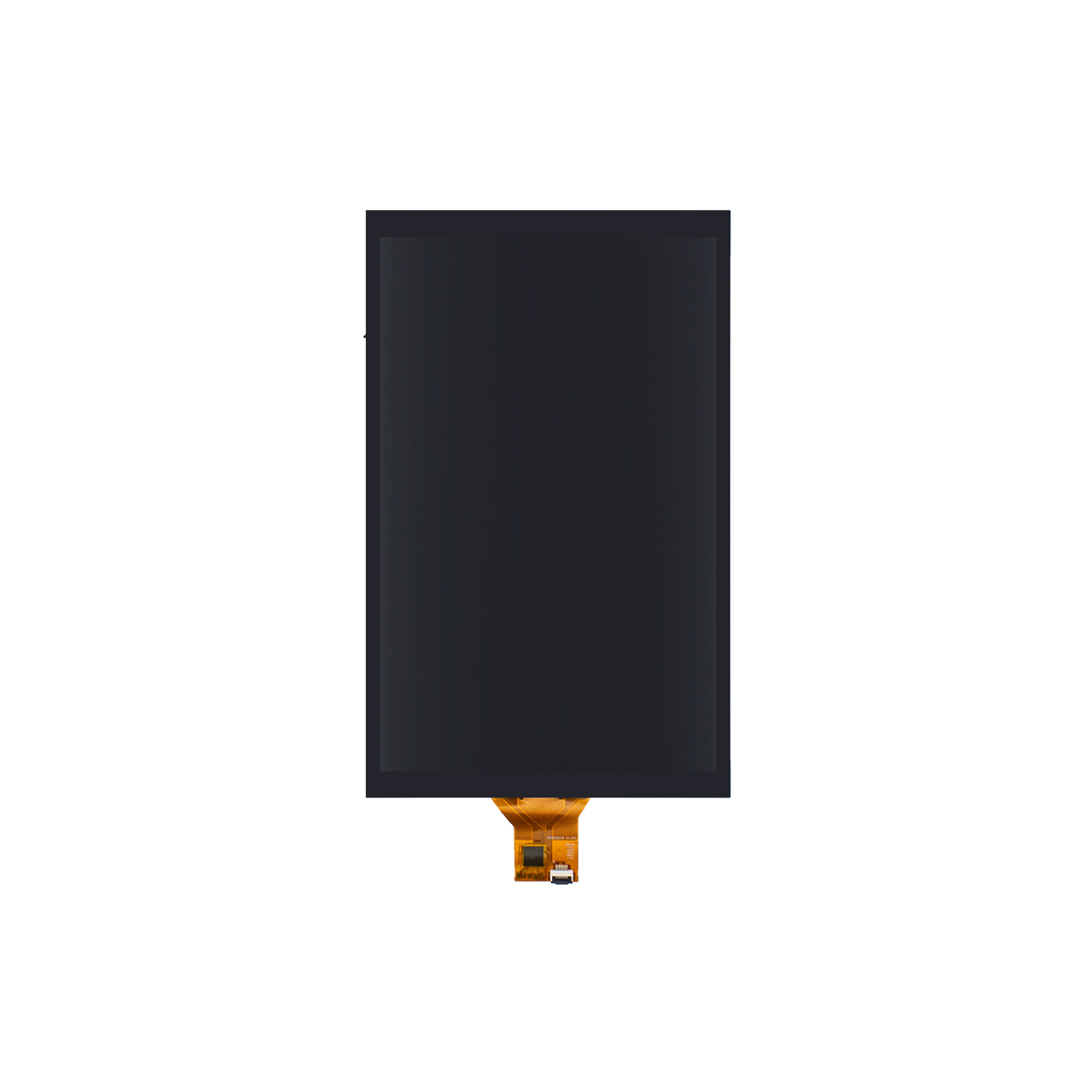

| 7 inch High Brightness TFT LCD Display 1200x1920 Resolution HX8279 TFT-H070D12ZFIHXTC40 | TFT Display | 1200x1920 |
|
111.0x166.0x3.3 | 7.0 | 7.0 | 94.5x151.2 | IPS | 2000cd/m2 | FPC-40PIN | MIPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | HX8279 | |

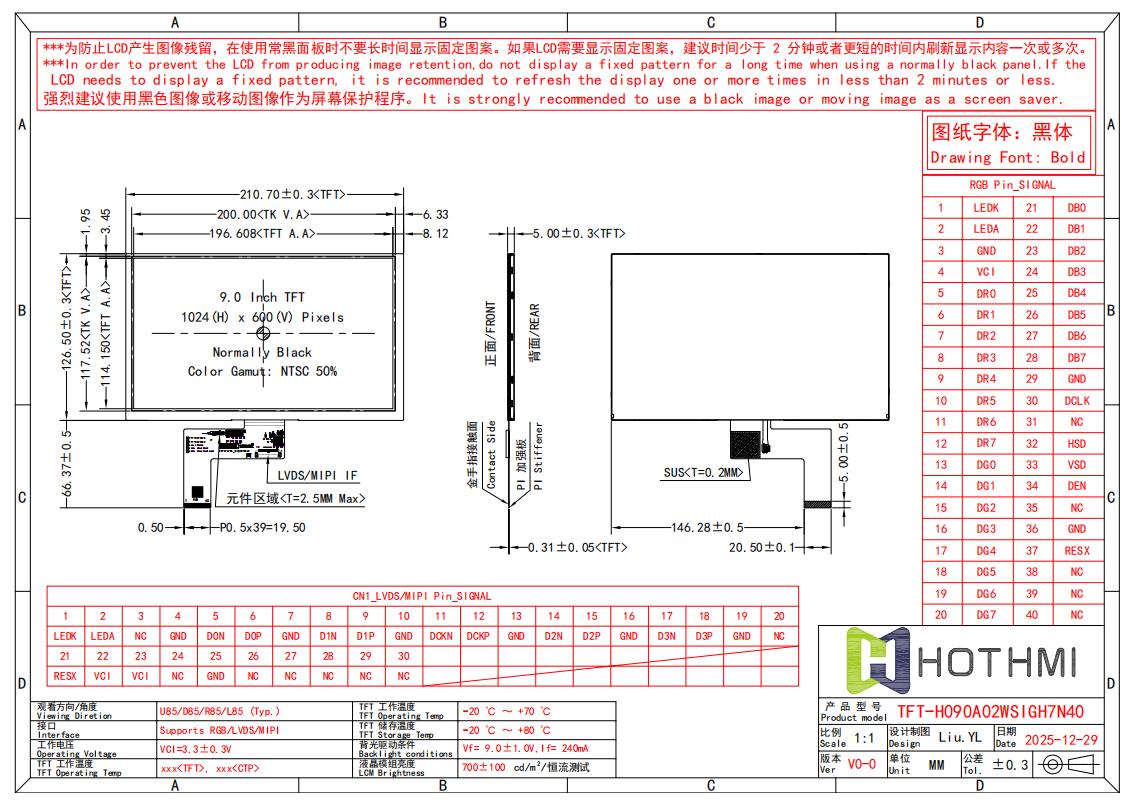

| 9 inch TFT LCD Display With 1024x600 Resolution TFT-H090A02WSIGH7N40 | TFT Display | 1024x600 |
|
210.7x126.5x5.0 | 9.0 | 9.0 | 196.608x114.150 | IPS | 700cd/m2 | FPC-40pin | RGB | Anti-static ESD 8KV | -20~70℃ | +3.3V | ||
| 2.8 inch SPI TFT LCD Display With ST7789 Driver IC TFT-H028A26QVTST3N14 | TFT Display | 240x320 |
|
50.0x69.2x2.32 | 2.8 | 2.8 | 43.2x57.6 | IPS | 300cd/m2 | FPC-14pin | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7789 | |

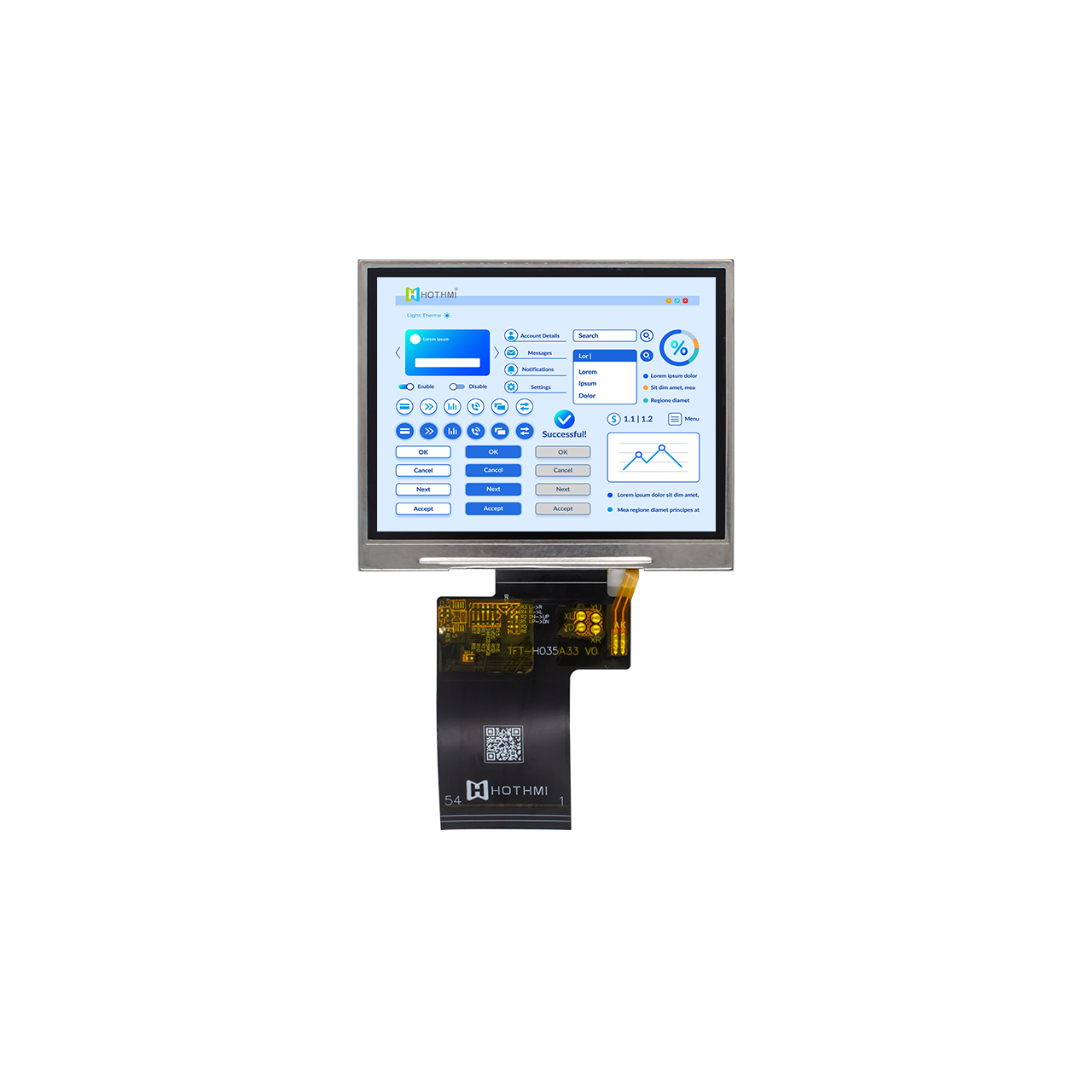

| 3.5 inch 320x240 Resolution TFT LCD Display Sunlight Readable TFT-H035A33QVIST8N54 | TFT Display | 320x240 |
|
76.84x63.84x3.35 | 3.5 | 3.5 | 70.08x52.56 | IPS | 800cd/m2 | FPC-54 PIN | RGB、LVDS | Anti-static ESD 8KV | -20~70℃ | +3.3V |
