7-inch High Brightness TFT LCD: Engineered for Extreme Environments

This 7-inch High Brightness TFT LCD is specifically engineered to deliver reliable visual performance under direct sunlight and extreme environmental conditions, making it a superior choice for industrial and outdoor applications. This 7-inch High Brightness TFT LCD features an 800(H) x 480(V) pixel resolution, providing clear and detailed imagery, with a slim module thickness of just 3.45mm (non-touch) or 4.96mm (with capacitive touch). A standout characteristic of this 7-inch High Brightness TFT LCD is its exceptional operating temperature range from -30℃ to +85℃ and storage from -40℃ to +90℃, ensuring functionality in freezing or scorching environments. The optical specifications include wide viewing angles (U85/D85/R85/L85), a typical contrast ratio of 1000:1, and a high brightness of up to 900 cd/m2 (non-touch) or 800 cd/m2 (with CTP). This 7-inch High Brightness TFT LCD supports both MIPI and LVDS interfaces on a single 40-pin connector. It integrates the GT911 capacitive touch controller with I2C, supporting 5-point touch, 6H surface hardness, and 80% transmittance. With an LED backlight life of 30,000 hours and low power consumption, this 7-inch High Brightness TFT LCD delivers long-term reliability. Built-in reset circuitry and ESD protection (±4kV contact, ±8kV air discharge) further enhance its ruggedness.

Thanks to its robust design and high brightness, this 7-inch High Brightness TFT LCD is ideal for demanding environments where consumer displays fail. Primary applications include automotive infotainment, outdoor kiosks, and industrial HMIs that require direct sunlight readability. Medical devices, marine navigation, and agricultural machinery also benefit from its reliable operation from -30℃ to +85℃. The 7-inch High Brightness TFT LCD supports always-on public information displays, with LED backlight showing only 8% decay after 5,000 hours. With optional capacitive touch and dual LVDS/MIPI interfaces, this 7-inch High Brightness TFT LCD simplifies integration into rugged tablets, POS terminals, and security systems. In every scenario, the 7-inch High Brightness TFT LCD’s 1000:1 contrast ratio and 50% color gamut ensure vivid, readable graphics even under thermal stress or prolonged operation.

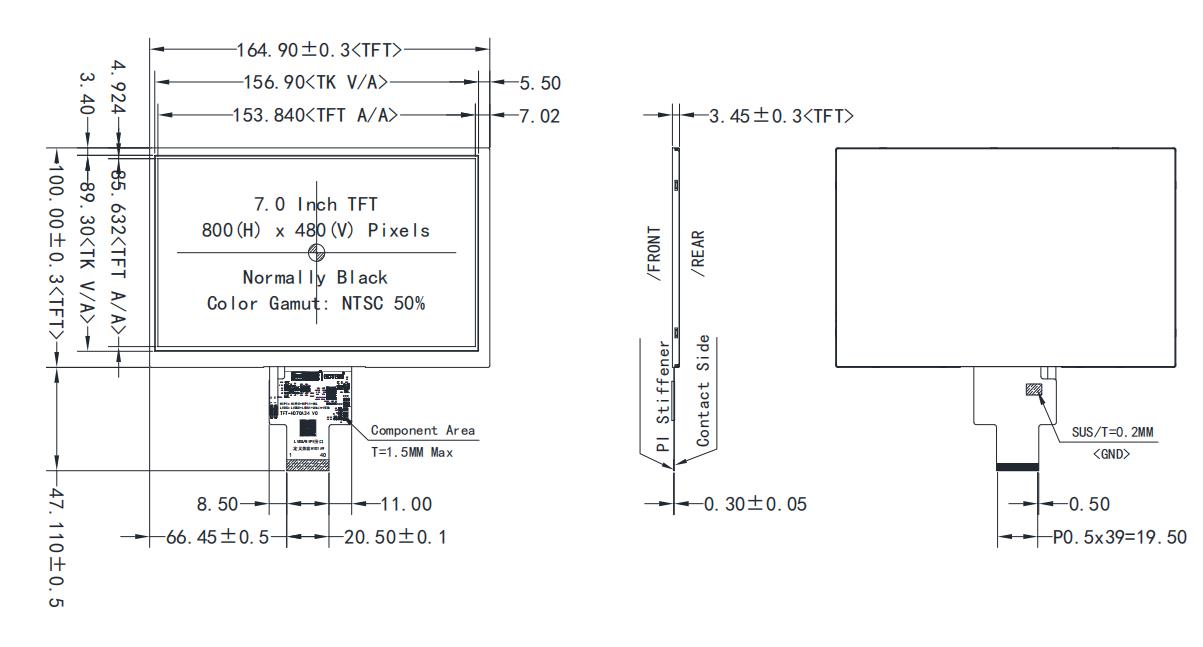

Specification of the 7-inch Ultra Wide Temperature TFT LCD
