Product type：Graphic LCD Module
Show contents：160x64
Outline size(mm) ：79.0x42.3x5.2
Size of View Window(mm)：60.0x25.1
Display size(mm) ：55.97x22.37
Point spacing(mm)：0.28x0.28
Product application：Instruments
Visual angle：6H
Connection PIN Number：16 PIN
Interface mode：SPI
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：+3.3V
Driver chip model：ST3020

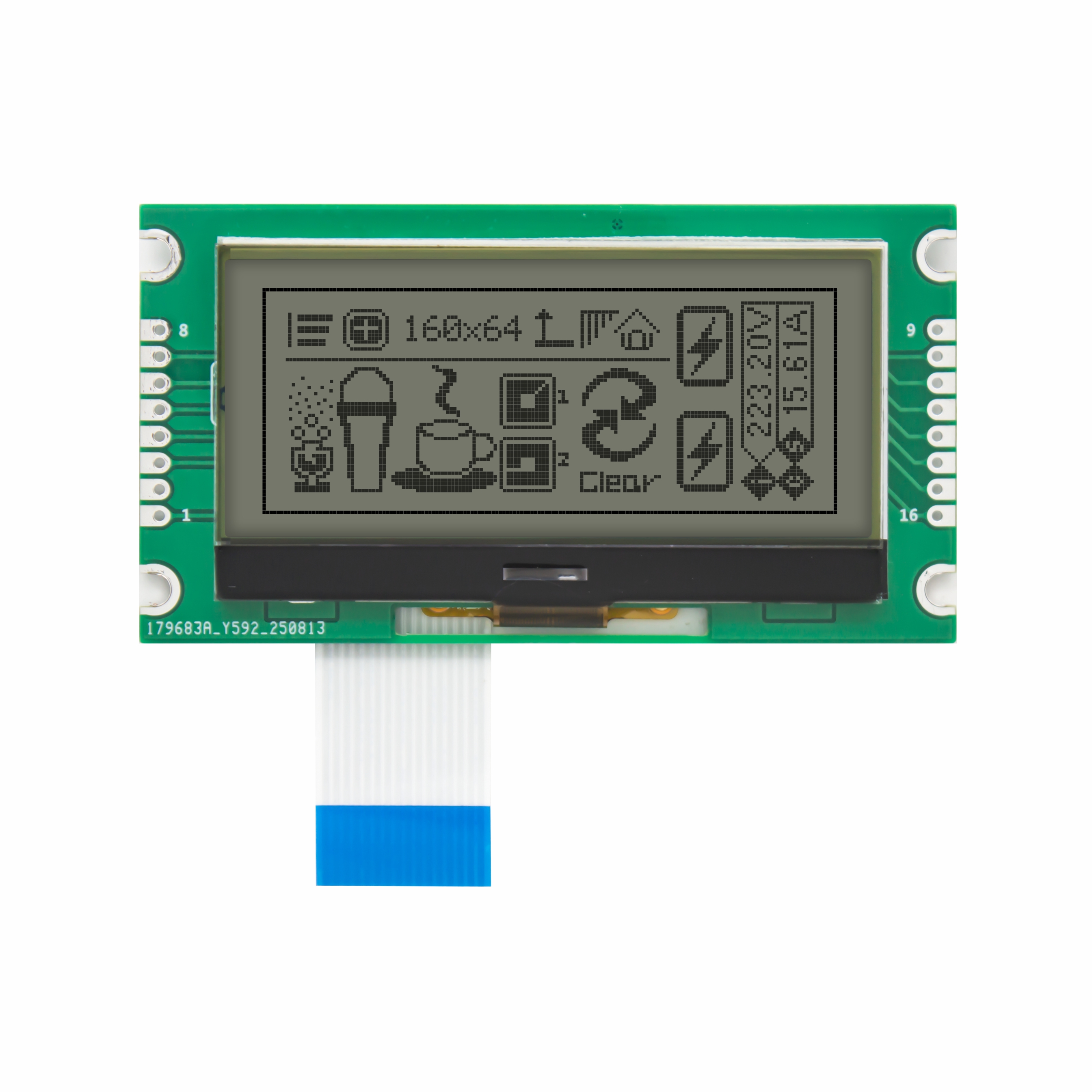

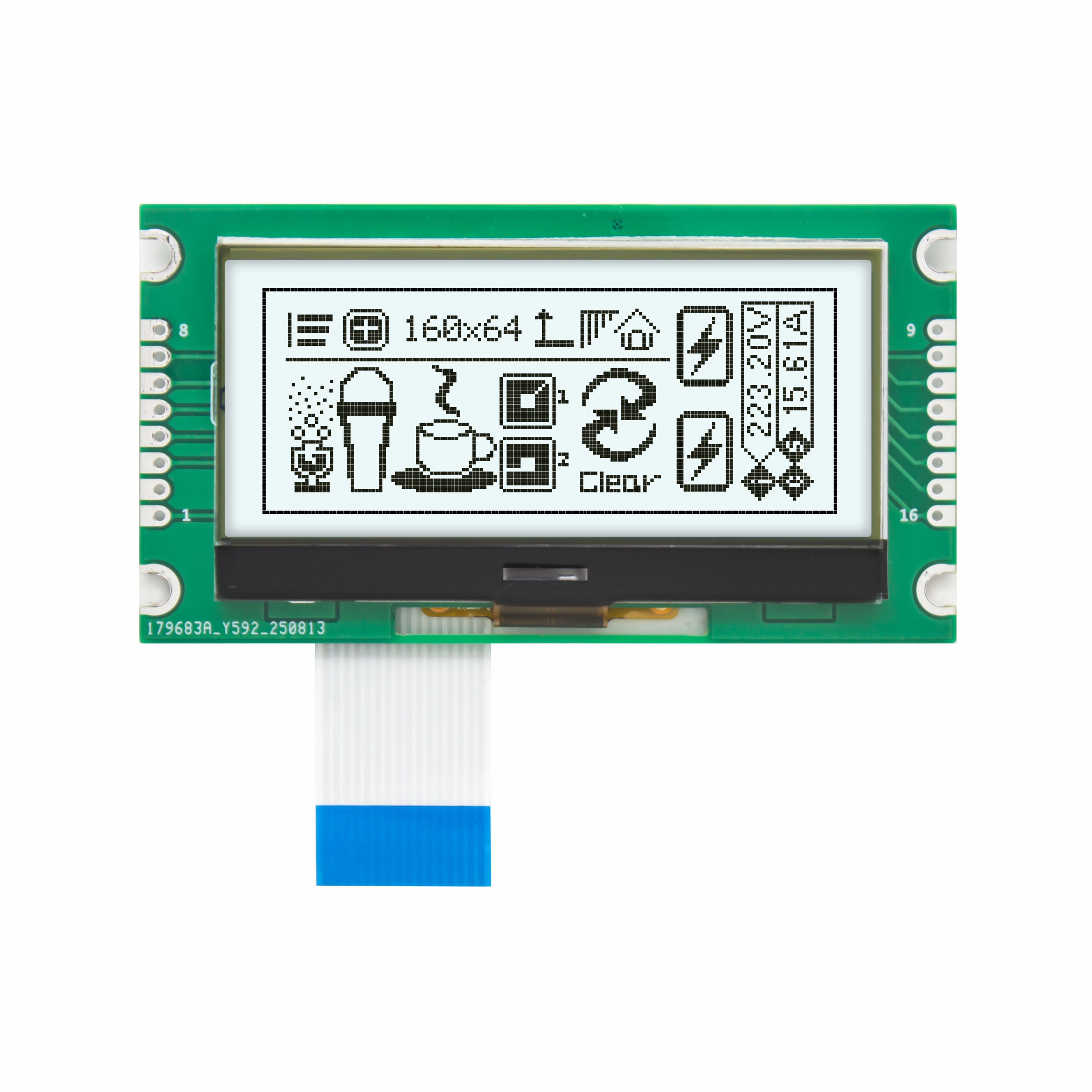

This 160x64 pixel graphic LCD module utilizes FSTN grayscale technology, displaying dark pixels on gray, whether powered on or off. This transflective display is engineered to provide an optimal 6:00 viewing angle in all environments. In bright sunlight, the display utilizes its reflective layer to reflect ambient light back toward the viewer, making the screen easy to read. In darker conditions, a built-in yellow-green side backlight provides bright, high-contrast graphics. This advanced display technology ensures that this monochrome display is easy to read in all lighting conditions.
This graphic LCD features a built-in ST3020 controller and communicates via a 6800/8080 parallel interface, ensuring compatibility with a variety of interfaces and development boards, including Arduino. The graphic module operates from a 3.3V power supply and has an operating temperature range of -20 to 70 degrees Celsius. All of our displays are RoHS compliant and adhere to strict environmental and safety standards.
