Product type：Character LCD Module
Show contents：16x2
Outline size(mm) ：100X42X13
Size of View Window(mm)：80X20.5
Display size(mm) ：76.37x16.02
Point spacing(mm)：0.83x0.98
Product application：Instruments
Visual angle：12H
Backlight type or brightness：white
Connection PIN Number：16PIN
Interface mode：MCU
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：5.0V
Driver chip model：ST7066U

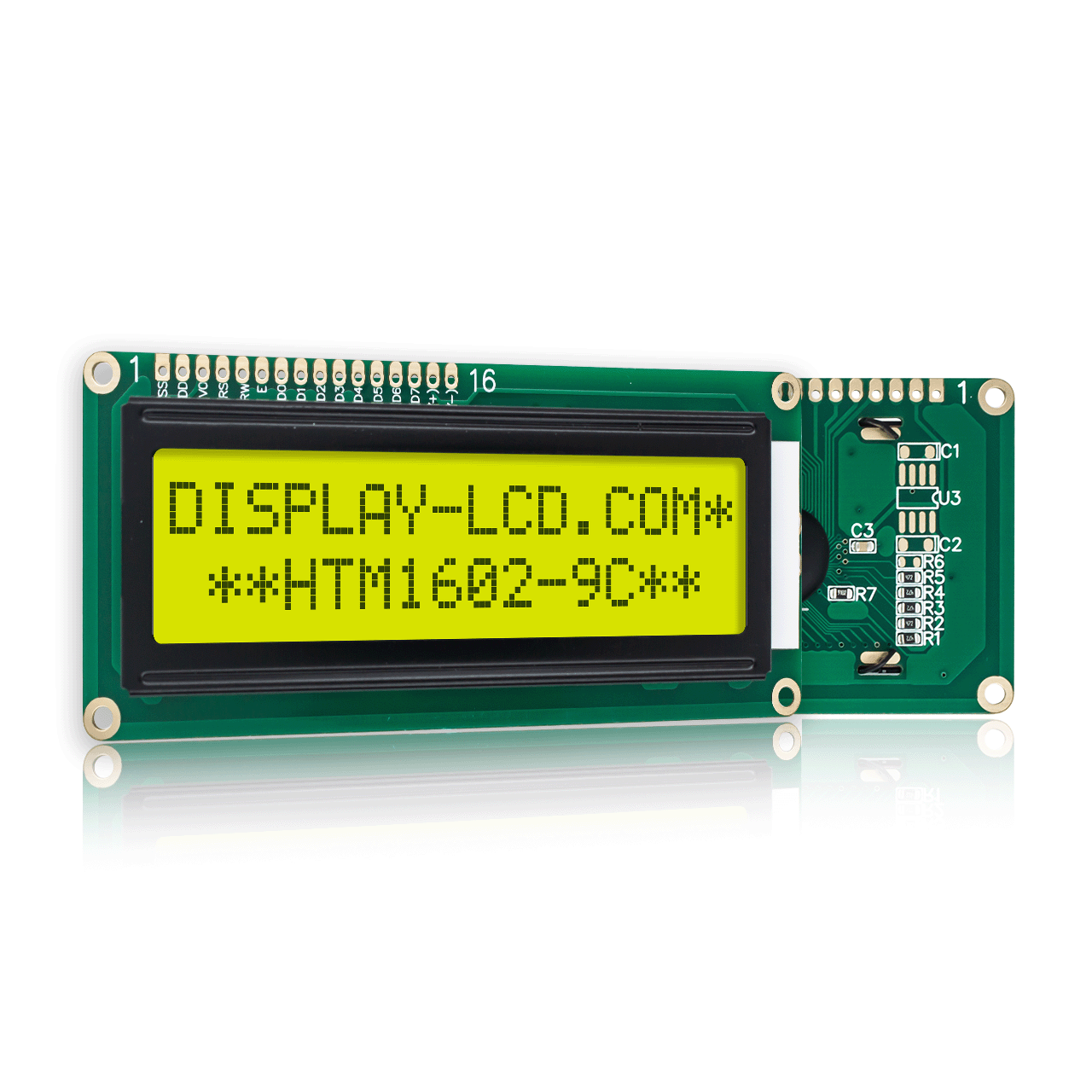

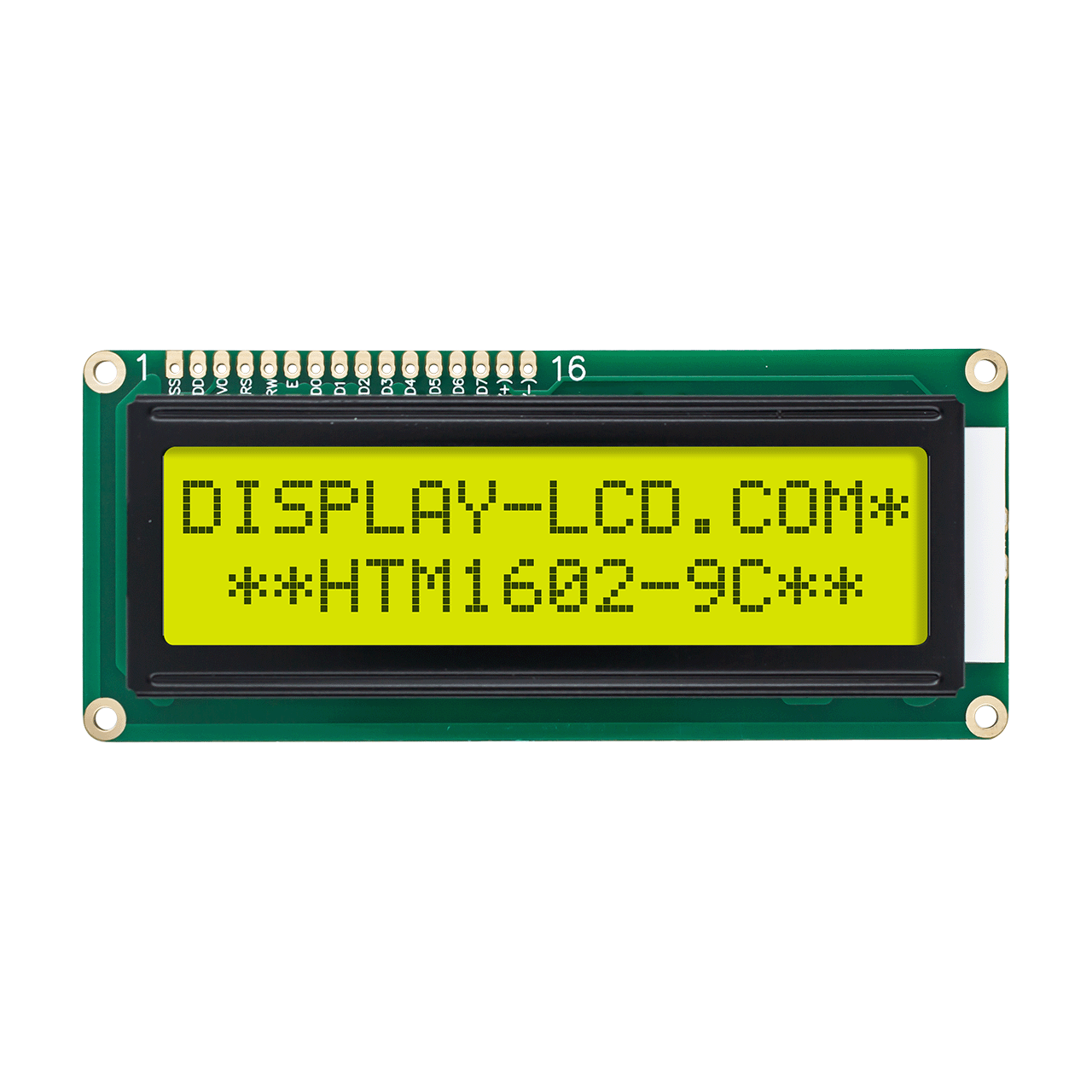

This 16x2 character LCD displays bright black pixels on a yellow-green background. Transmissive display mode features built-in LED backlighting for optimal visibility in low-light conditions. This HTM-1602-9C-11Y-A5P-V03 monitor features an optimal viewing angle of 12:00, a wide operating temperature range of -20 to 70 degrees Celsius, and operates on a 5V supply voltage. This Arduino-compatible monitor comes with an ST7066U controller, providing a great viewing experience and performance at an affordable price.
